There is a long list of built-in dialog boxes available in Excel. We can access and open those dialogs, and Windows dialogs too, with VBA code. In this post, we see how to launch and use file dialogs in Excel using VBA macros. We will see how to select a folder or file, and open or save a file (usually an Excel workbook). We also compare and discuss advantages and disadvantages of the different methods.
Types of Dialogs
There are more than two hundred dialogs available in Excel. We can launch a dialog with Excel VBA targeting the Dialogs object. When it comes to file dialogs, we could trigger the dialog to open a file simply as follows.
Set objDialog = Application.Dialogs(xlDialogOpen)
objDialog.Show
However, Excel
has better ways to work with file dialogs. The most commonly used methods to
open a file dialog with Excel VBA are using the property FileDialog or the
function GetOpenFilename. The file dialog may look and behave slightly
different depending on the method used and selected parameters. Here’s how the
conventional Office dialog box to open a file looks like.
The file dialog prompts
the user to select a folder or file, or to directly open or save the selected
file or files. As we will see later, FileDialog and GetOpenFilename can set and
modify some of the properties of the file dialog. We will see later in detail
how each of them works, but for now let’s see a table with key characteristics
for each of them.
FileDialog |
GetOpenFilename |
Property of Application object |
Method of Application object |
Allows to pick file, folder, open or
save file (four dialog types) |
Used only to open file (also can save) |
Allows to filter by file type,
whether to select only one or multiple files, to set the dialog box title,
pre-setting the filename selected, changing how files are shown and the view
of the button |
Allows to filter by file type,
whether to select only one or multiple files, and to set the dialog box title |
Requires method “Show” to open
dialog |
Opens dialog directly |
Can open/save the file with method
“Execute” when dialog type is file open or save |
Does not open file directly |
May run a bit slower as it has more
control |
May run faster |

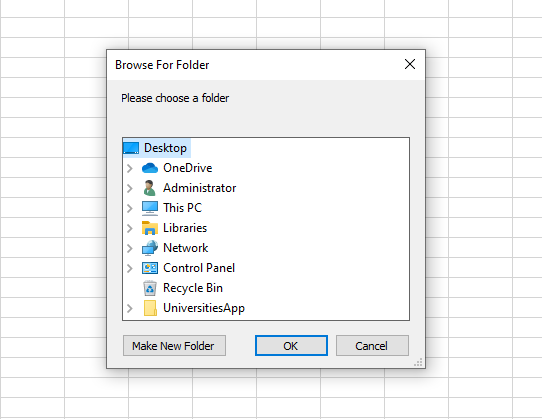

We can also
trigger Windows dialogs from within Excel using the shell application. We will
see how to do that later in this article. For example, the Windows folder
browser dialog looks as shown below.
FileDialog Property
The FileDialog property of the Application object returns an
object representing an instance of a file dialog, which provides a dialog box
functionality similar to those used to open and save a file in Excel and other
Office applications. FileDialog accepts an argument (MsoFileDialogType) to
determine the type of dialog, which can be one of the four possible options
below.
- msoFileDialogFilePicker – File picker dialog box
- msoFileDialogFolderPicker – Folder picker dialog box
- msoFileDialogOpen – File open dialog box
- msoFileDialogSaveAs – File save as dialog box
The code below prompts a dialog box to select a file using the
FileDialog property of the Application and the Show
method of the generated FileDialog object. We could set certain properties such
as title, file filter, etc. of the file dialog before showing the dialog (for
example with myDialog.Title = "Select file to open").
Set myDialog = Application.FileDialog(msoFileDialogOpen)
myDialog.Show
The conditional statement below checks if the file has been selected,
and displays the path and name of the first selected file in a message box. The
same would apply if we use any of the other dialog types (file or folder
picker, or file save).
MyDialogSelection = myDialog.SelectedItems(1)
MsgBox "The path of the selected file is " & MyDialogSelection
End If
When using the file open (as in this example) or the file save
dialog types, the method Execute can actually open or save the file or files,
if we wish to do so. Otherwise, the file or files will not be open or saved,
despite clicking on “Open” or “Save” in the dialog.
myDialog.Execute
Another way to open the file or files, which also applies to the
other dialog type (file picker), is using the Open method of the Workbook
object along the file name and path retrieved. If this is new to you, please
read more about it in this other page: Workbook object.
Workbooks.Open
MyDialogSelection
And another way to save the file is using the SaveAs method of
the Workbook object as shown below to save the active workbook. We can save any
other open workbook replacing “ActiveWorkbook” with
“Workbooks(“nameofoworkbook.xlsx”). Read more about that in the other page
(Workbook object) or download Excel VBA Objects Guide for Intermediate.
ActiveWorkbook.SaveAs
MyDialogSelection
When selecting more than one file, we can get access to each of
them looping through the selected items collection as indicated below. This
only works with msoFileDialogFilePicker or msoFileDialogOpen.
MsgBox "The path of the selected file is " & fileSelected
Next fileSelected
And if you are
interested to see how to loop through the files when selecting a folder (msoFileDialogFolderPicker) have a look at this other article: List
All Files in Folder
GetOpenFilename
The GetOpenFilename method of the Application object displays a
standard file open dialog box to select a file or files, and gets the file name
without actually opening the file. It shows a similar dialog to the one shown
earlier for FileDialog with msoFileDialogOpen.
GetOpenFilename allows setting file filters and customizing
the dialog title alongside (also possible with FileDialog after the object is
created). The code below prompts an open dialog box with title “Select Files”
to select only Excel files. MultiSelect allows to select multiple files when
set to True.
selFiles = Application.GetOpenFilename(FileFilter:="Excel Files (*.xls*),*.xls", _
Title:="Select Files", MultiSelect:=True)
We can get the path and name of each file looping through the
selected files (selFiles in the code above), in the same way we have seen
earlier with the SelectedItems collection of the FileDialog property.
For Each uFile In selFiles
MsgBox uFile
Next uFile
GetOpenFilename is a method and cannot take any other function to
open the file as we have seen before with Execute for the FileDialog property/object.
If we actually want to open the selected file or files, we need to use the Open
method of the workbook (Workbooks.Open uFile).
We can also get the file name from a SaveAs dialog (as for
FileDialog with msoFileDialogSaveAs) using the
method GetSaveAsFilename, which displays the standard SaveAs dialog box and
gets a file name without actually saving any files.
Windows Folder Dialog
We can also
select and get the path to a folder using a Windows dialog. This would be
similar to using FileDialog along msoFileDialogFolderPicker. However, the dialog looks quite
different, the former was a conventional Office file dialog while this one is a
Windows folder browser – see below.
To launch the
Windows dialog we use the shell application object as indicated below, where
“defaultFolder” is a variable that specifies the folder that appears first in
the dialog. If not specified, it shows the Windows Desktop folder.
Set ShellApp = CreateObject("Shell.Application"). _
BrowseForFolder(0, "Select a folder", 0, defaultFolder)
Then we can get the name and path of the folder as indicated below. If no folder is selected (cancel the dialog), the code below prompts an error, and therefore, we need to add error handling to avoid it.
SelectedFolder = ShellApp.self.Path
On Error GoTo 0
Finally, we clear the shell object and display the name of the folder (if selected). As explained earlier, there are different things we may want to do with that folder. We may want to loop through files, copy, move, etc. Check this other post to see how to loop through files in a folder: Get Info of Selected Files
If SelectedFolder <> "" Then MsgBox SelectedFolder
And that’s how we can launch file dialogs with Excel VBA and get
the name and path of the selected folder, file or files, and then open or save
the file or files with the same property in some cases or using functions of
the workbook object for other scenarios.
